Specification
General | ||
Dimension | Folded: 236×64×316 mm (L×W×H, excluding the tripod and the Quick-Release Plate) Unfolded: 175×182×338 mm (L×W×H, excluding camera, tripod, and the Quick-Release Plate) |
|
Weight | Gimbal: Approx. 890 g (2 lbs) (including the Quick-Release Plate and excluding the tripod) Extended Grip/Tripod: Approx. 140 g (0.3 lbs) |
|
Model | RS 4 Mini | |
Compatibility | iOS 14.0 or above Android 9.0 or above |
|
Battery | ||
Capacity | 3100 mAh | |
Charging Time | Approx. 1 hour and 50 minutes | |
Ports | Bluetooth 5.1 Charging Port (USB-C) |
|
Mount | Magnetic attachment | |
Gimbal | ||
Consumption | < 1 W | |
Mechanical Range | Pan Axis: 360° continuous rotation Roll Axis: -95° to +235° Tilt Axis: -110° to +210° |
|
Max Controllable Speed | Pan: 360°/s Tilt: 360°/s Roll: 360°/s |
|
Warranty | ||
Warranty | No Warranty |
Description

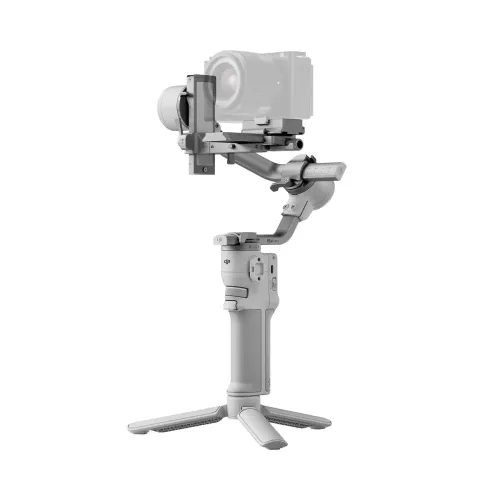

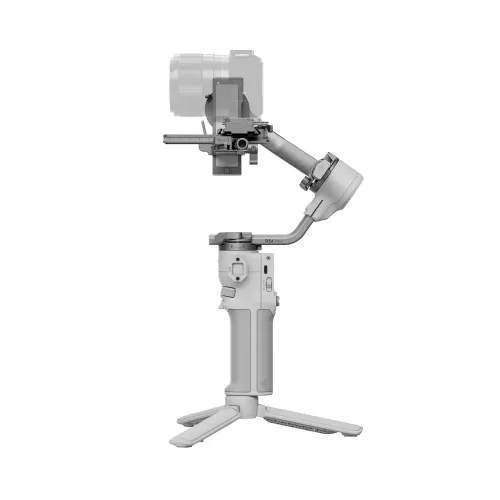

DJI RS 4 Mini Gimbal Stabilizer
The DJI RS 4 Mini Gimbal Stabilizer is a versatile and durable Camera-handling gimbal intended for professional videographers and photographers. This DJI RS 4 Mini has several accessory ports, such as 1/4″-20 mounting holes, RSS Camera Control Port (USB-C), NATO connectors, and several USB-C ports for focus motor communication. The DJI RS 4 Mini gimbal is powered by a 3100 mAh LiPo 2S battery (BHX724-3100-7.2), which can run the device for up to 13 hours under ideal circumstances and takes about 1.5 hours to fully charge using a 22.32Wh fast charger. The Bluetooth 5.1 of the DJI RS 4 Mini Camera Gimbal Stabilizer guarantees a smooth connection with the Ronin app, which works with iOS 14.0 and Android 9.0 or later. With a tested payload capacity of 0.4-2 kg (0.88-4.4 lbs) and a maximum regulated rotation speed of 360°/s across the pan, tilt, and roll axes, the DJI RS 4 Mini Gimbal Stabilizer has remarkable operational performance. A roll axis from -95° to +235°, a tilt axis from -110° to +210°, and a pan axis of 360° continuous rotation are all possible within the mechanical range. The DJI Smartphone Gimbal runs efficiently between -10° and 45° C (14° to 113° F), with a frequency range of 2.400-2.4835 GHz. The Bluetooth transmitter power is less than 4 dBm. It offers advanced 4th-generation stabilization technology, ensuring smooth and professional video footage. The DJI Gimbal lightweight design, combined with its advanced features, makes it an ideal choice for professional videography.
